Description

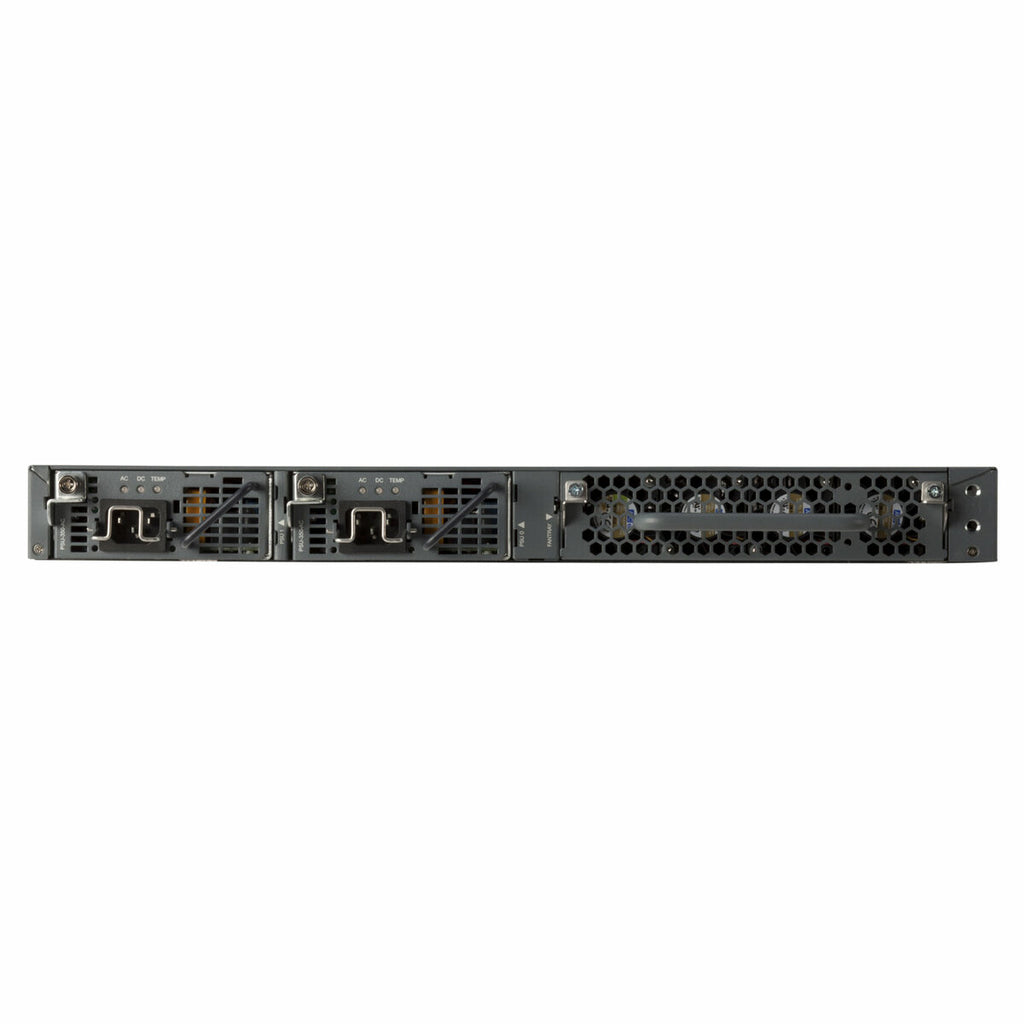

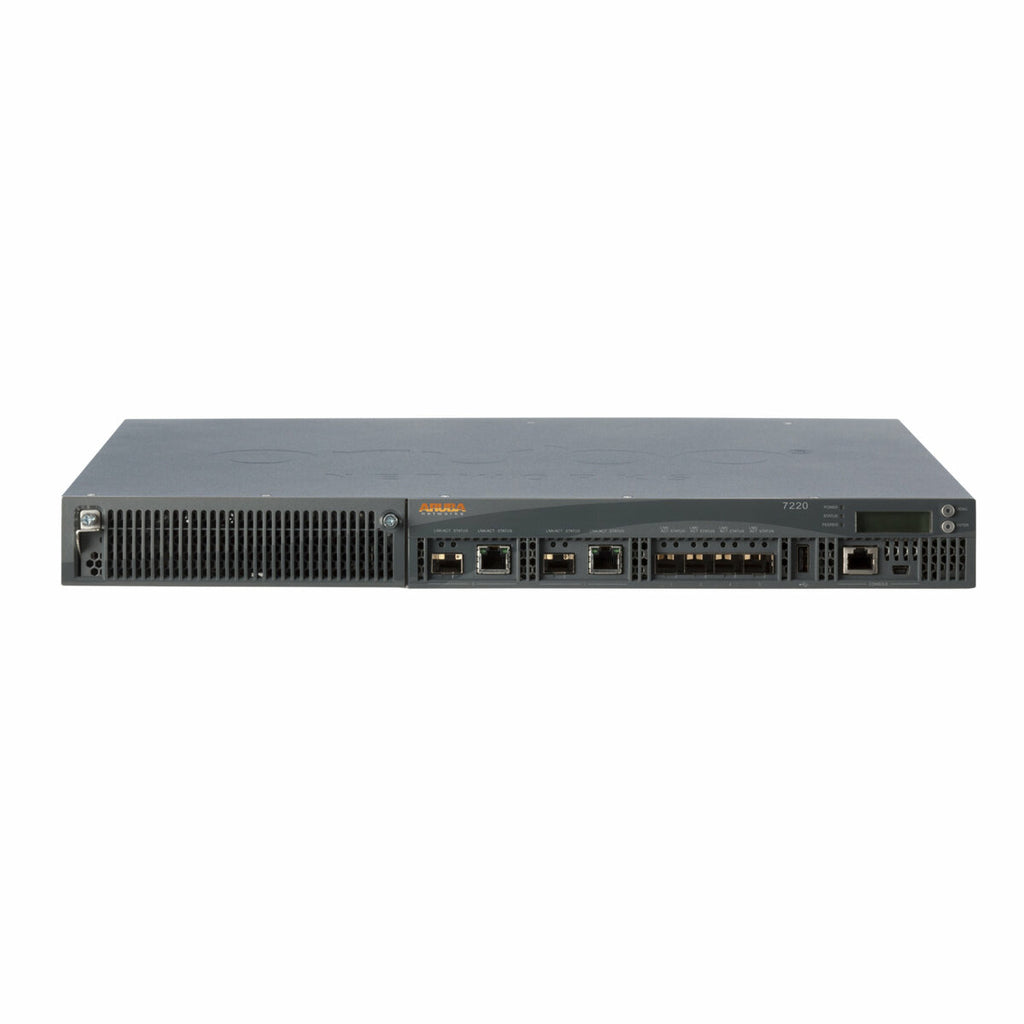

The HPE Aruba 7220 (US) Controller (JW752A) is a high-performance, rack-mountable WLAN controller designed for large campus and high-density enterprise environments. Part of the Aruba 7200 Series, it supports up to 2,048 APs and 32,728 concurrent client sessions with up to 100 Gbps throughput. Featuring four 10GBASE-X (SFP+) ports and two dual-personality (10/100/1000BASE-T or SFP) ports, it ensures robust scalability, seamless roaming, and advanced SD-WAN capabilities.
With support for Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7, this controller is ideal for future-proofing your wireless infrastructure. Integrated Dynamic Segmentation, Policy Enforcement Firewall, ClientMatch, and AirMatch ensure secure, optimized network experiences. Deploy it as a controller or SD-Branch gateway using Zero Touch provisioning and Aruba Central management.
| Specification | Details |
|---|---|
| Model | JW752A |
| Form Factor | 1U, Rack-mountable |
| Ports | 4x 10GBASE-X (SFP+), 2x Dual-Personality (RJ-45 or SFP) |
| Concurrent Users | Up to 32,728 |
| Access Points Supported | Up to 2,048 |
| Throughput | Up to 100 Gbps |
| Firewall Sessions | Up to 2 million |
| Wi-Fi Standards | Wi-Fi 6 (802.11ax), Wi-Fi 6E, Wi-Fi 7, WPA3, Enhanced Open™ |
| Input Voltage | 100–240 VAC (350W/550W) or -48 to -60 VDC (350W DC PSU) |
| Power Consumption | 125W |
| Heat Dissipation | 427 BTU/hour |
| Certifications | FCC Part 15A, CE, IC, VCCI, UL 60950, NOM, MIC, CB, Anatel, C-Tick |
| Mounting Options | JW107A, JW108A, JW109A |
| Product Dimensions | 1.75 x 17.5 x 17.5 in |
| Weight | 16.43 lb |
| Management Platform | Aruba Central, Aruba Mobility Conductor (AOS 10) |
