Description

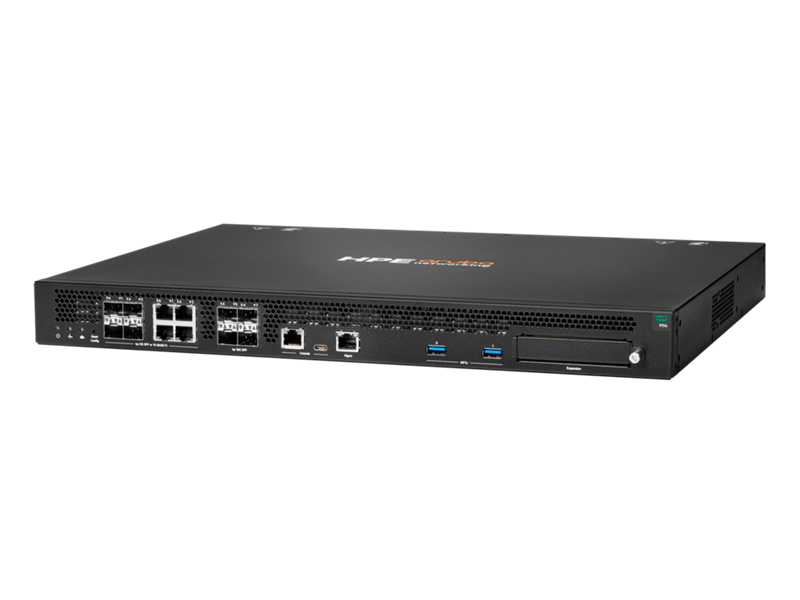

The HPE Aruba Networking 9114DC Hybrid Gateway is a high-performance, cloud-optimized edge appliance designed for large branch deployments and small campus networks. With 4x 10GbE SFP+ ports and 4x 1GbE combo SFP/copper ports, this gateway delivers up to 20 Gbps of throughput, supporting up to 4,000 access points and 10,000 clients.
Featuring a DC power supply with redundancy support, 1U rackmount form factor, and expansion slot, the 9114DC operates with HPE Aruba’s AOS 10 and Aruba Central for AI-powered network orchestration and zero-touch provisioning. Built for resilient always-on connectivity, it also supports role-based dynamic segmentation, SD-Branch, VPN concentrator, and live upgrade functionality.
| Specification | Details |
|---|---|
| SKU | R9M48A |
| Form Factor | 1U Rackmount |
| Power Supply | 1x DC Power Supply (Redundant slot included) |
| Ports | - 4x 10GbE SFP+- 4x 1GbE Combo (SFP/1GbE Copper)- 1x RJ45 Mgmt Port- USB-C and RJ45 Console Ports |
| Expansion Slot | 1x Expansion Slot (reserved for future use) |
| USB Ports | 2x USB 3.0 Type-A |
| Performance | - Up to 20 Gbps throughput- 4K APs / 10K clients |
| Tunnel Capacity | - 32K IPsec tunnels- 40K total tunnels |
| Max Sessions | 2 million firewall sessions |
| Clustering | Up to 6 gateways per cluster |
| Power Consumption | 185W (Maximum) |
| Heat Dissipation | 631 BTU/hr |
| Cooling | 3x Fan trays |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 43.7 mm x 442 mm x 351 mm |
| Weight | 6.2 kg |
| Compliance | TAA Compliant; EN/IEC 62368, FCC Class A, UL, VCCI, etc. |
| Mounting | 2-Post Rackmount Kit Included |
| Warranty | 1-Year Hardware, 90-Day Software (Extendable) |
| Software Compatibility | AOS 10.5 or later, Aruba Central (Cloud Managed) |
