Description

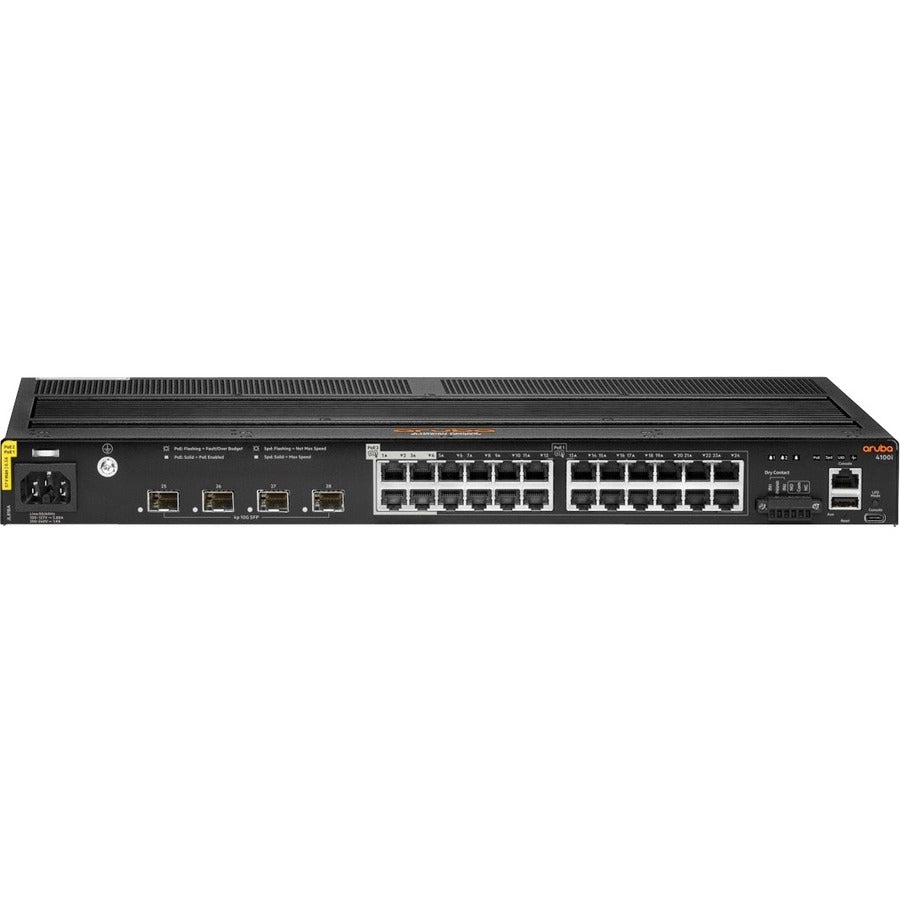

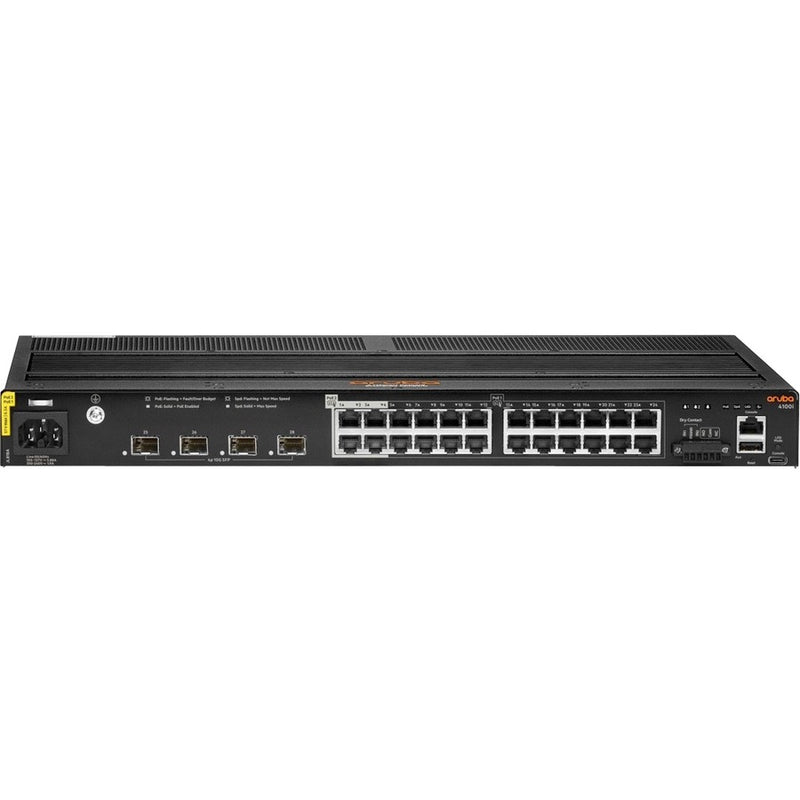

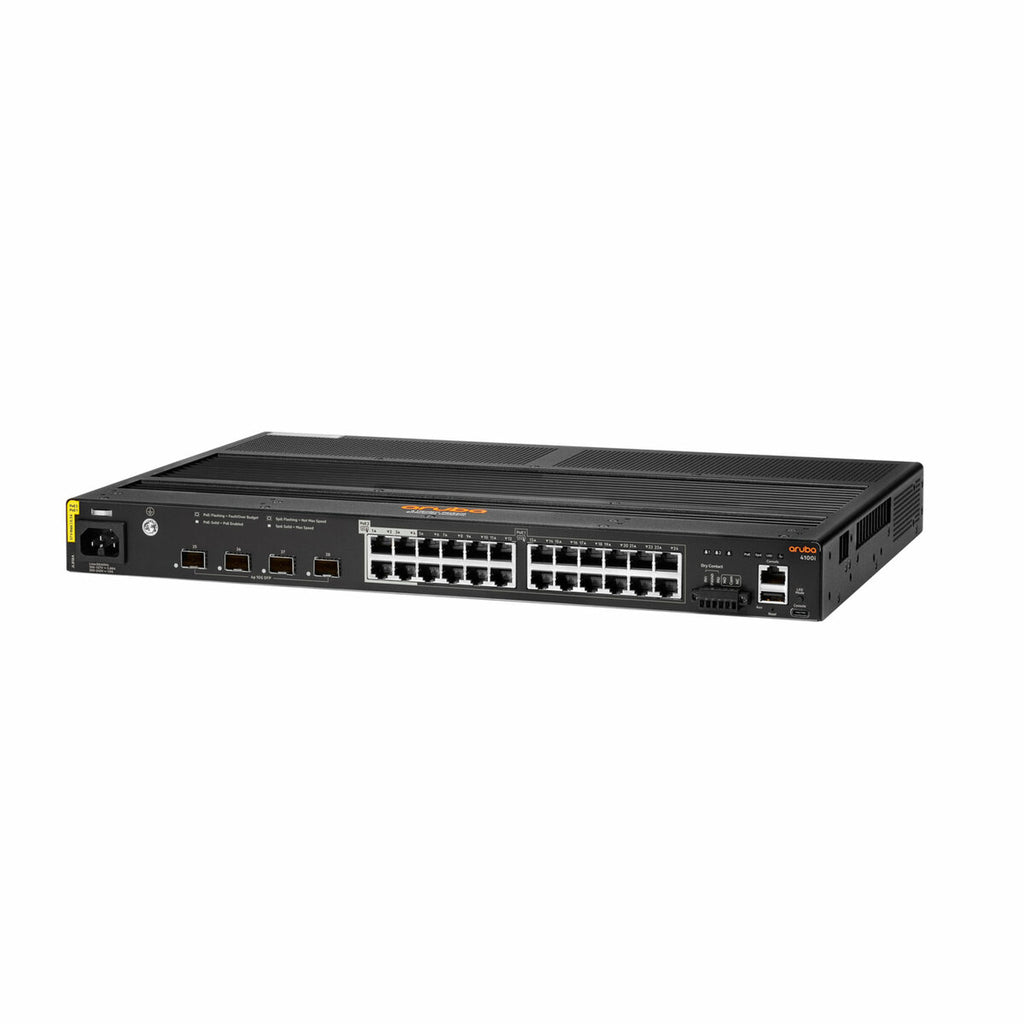

The HPE Aruba Networking CX 4100i Switch (JL818A#ABA) is a ruggedized Layer 2 Ethernet switch designed for high-performance connectivity in harsh environments. Ideal for connecting IoT devices, wireless access points, and user endpoints, it features 20x 1GbE PoE Class 4 ports (30W), 4x 1GbE PoE Class 6 ports (60W), and 4x 1/10GbE SFP+ uplinks for high-speed backbone connectivity. With IP30-rated construction, this switch withstands extreme temperatures and supports industrial deployments such as factories, warehouses, and outdoor enclosures.
Powered by the robust AOS-CX operating system and offering static routing, ACLs, QoS, and Dynamic Segmentation, the CX 4100i delivers a consistent enterprise experience with no additional software licensing required. Flexible management options include CLI, Web GUI, and Aruba Central. Its internal 300W PSU delivers up to 240W PoE without derating, while its fanless design ensures quiet operation even in demanding industrial environments.
| Specification | Details |
|---|---|
| Model Number | JL818A#ABA |
| Switching Capacity | 128 Gbps |
| Routing Throughput | Up to 95 Mpps (64-byte packets) |
| PoE Support | 20x Class 4 (30W), 4x Class 6 (60W), up to 240W total (no derating) |
| Ports | - 20x 10/100/1000BASE-T PoE+ (Class 4)- 4x 10/100/1000BASE-T PoE++ (Class 6)- 4x 1/10GbE SFP+ uplinks- 1x USB-C Console- 1x RJ-45 Console- 1x USB-A Host- 1x Alarm socket |
| Management | Aruba Central, Web GUI, CLI, Multi-Edit Software |
| Memory & Storage | 4 GB DDR3, 32 GB eMMC |
| Latency | 1Gbps: 1.585 Ī¼s10Gbps: 1.243 Ī¼s |
| Stacking | Not supported |
| Power Supply | Fixed internal 300W |
| Input Voltage | 100ā240V AC |
| Power Consumption | Idle: 23WFull Load: 34WFull Load w/Heater: 62W |
| Heat Dissipation | 117 BTU/hr (at 230V, 25Ā°C) |
| Environmental Specs | -40Ā°C to 70Ā°C operating temperature |
| Form Factor | 1U Rack Mount (DIN rail variant also available) |
| Dimensions (HxWxD) | 1.73 in x 17.5 in x 12.0 in |
| Weight | 14.26 lbs |
| Software Features | AOS-CX, static routing, ACLs, QoS, IPv6, Dynamic Segmentation, REST APIs |
| Licensing | No switch software licensing required |
