Description

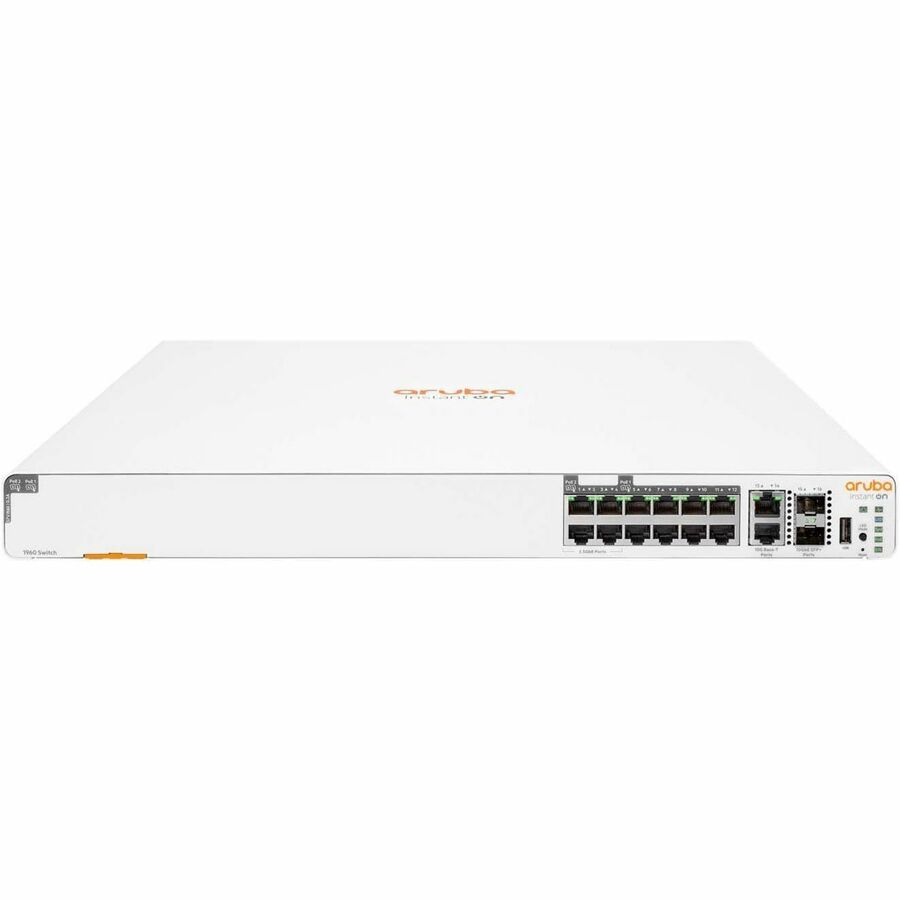

Upgrade your growing business network with the HPE Networking Instant On 1960 12-Port Smart-Managed Switch (S0F35A). Designed to meet the demands of bandwidth-intensive applications such as video conferencing, cloud collaboration, and large data transfers, this compact yet powerful switch delivers high-performance connectivity with simplified management.
Featuring 8x Gigabit Class 4 PoE+ ports, 4x 2.5G Class 6 PoE++ ports, 2x 10GBASE-T uplinks, and 2x SFP+ 10GbE ports, the 1960 switch enables lightning-fast data transfer and power delivery up to 60W per port. Ideal for modern IoT environments, this Layer 2+ switch supports cloud-managed and local web GUI management with stackable scalability for up to four switches—all from a single IP.
With a 480W total PoE budget, robust security features, and a mobile app for streamlined setup and monitoring, the HPE Instant On 1960 ensures your network stays reliable, secure, and easy to scale.
| Feature | Details |
|---|---|
| Model Number | S0F35A |
| Total Ports | 12 RJ-45 ports (8x 1G CL4 PoE+, 4x 2.5G CL6 PoE++) |
| Uplink Ports | 2x 10GBASE-T, 2x SFP+ (10GbE) |
| PoE Power Budget | 480W total (supports PoE+ and PoE++) |
| Switching Capacity | 116 Gbps |
| Throughput | 172 Mpps |
| Memory & Processor | 1 GB DDR3 RAM, 512 MB NAND, ARM Cortex-A9 @ 800 MHz |
| Packet Buffer | 1.5 MB |
| Stacking Support | Up to 4 switches via cloud-managed or local stacking |
| Management Options | Cloud-managed (app/portal), Local Web GUI, SNMP |
| Security Features | VLAN, ACLs, 802.1X with RADIUS, DoS protection |
| Power Input | 100–127VAC / 200–240VAC |
| Max Power Consumption | 635W (100–127V), 623W (200–220V) |
| Idle Power Consumption | 34W (100–127V), 40W (200–220V) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (WxDxH) | 40.28 x 44.25 x 4.40 cm |
| Weight | Up to 4.9 kg |
| Mounting | Rack-mountable (4H height) |
