Description

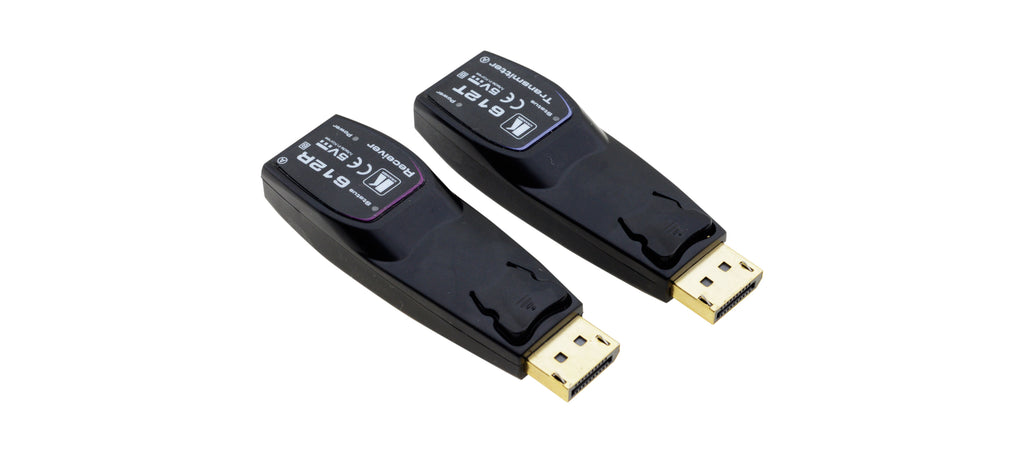

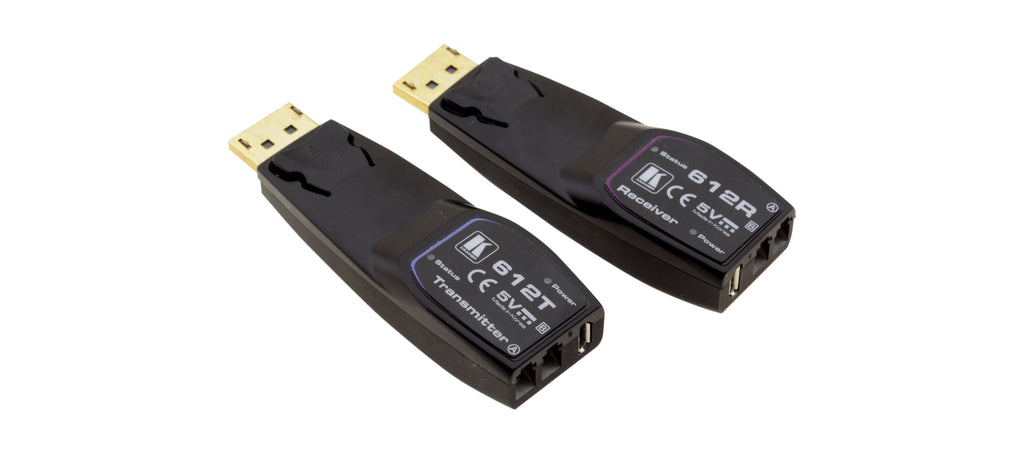

The Kramer 612R/T(SET) is a compact DisplayPort 1.2 fiber-optic extender kit designed for ultra-high-resolution AV applications requiring secure, long-distance, uncompressed signal extension. Delivering full 4K60 (4:4:4) performance, this transmitter and receiver pair extends DisplayPort signals up to 200 meters (656 feet) over dual LC multimode OM3 fiber while maintaining exceptional image quality and low latency.
Engineered for professional environments, the 612R/T set supports 21.6Gbps throughput, Dual-mode DP (DP++), HDCP 2.2, EDID, and DPCP for seamless compatibility with a wide range of source and display devices. Its compact plug-and-play design makes installation effortless, ideal for command centers, government facilities, broadcast environments, secure installations, and high-performance workstations.
With pure fiber connectivity, auxiliary/I²C channel support, and flexible USB-based power options, this extender set ensures smooth, secure, and reliable DisplayPort signal transmission for the most demanding installations.
| Category | Specification |
|---|---|
| Max Resolution | 4096×2160 @ 60Hz (4:4:4) |
| Max Data Rate | 21.6Gbps (HBR2, 5.4Gbps per lane) |
| Compliance | HDCP 2.2, EDID, DPCP |
| DisplayPort Support | DisplayPort 1.2, Dual-mode DP (DP++) |
| Max Extension Distance | 200m (656 ft) over dual LC multimode OM3 fiber |
| Supported Functions | Auxiliary / I²C channel over fiber |
| Transmitter (612T) Ports | DisplayPort (male, gold-plated), Micro USB (power) |
| Receiver (612R) Ports | DisplayPort (male, gold-plated), Micro USB (power) |
| Power Requirements | 5V via USB, external supply, or DisplayPort pin #20 |
| Recommended Fiber Type | Dual multimode OM3 (50/125µm) |
| Optical Connectors | Duplex LC |
| Optical Performance | Max attenuation: 2.5dB/km (850nm); Max skew: 0.4ns; Insertion loss: 0.5dB; Total attenuation: 1dB max @ 200m |
| Environmental – Operating | 0°C to +50°C (32°F to 122°F), 0–85% humidity |
| Environmental – Storage | −30°C to +70°C (−22°F to 158°F) |
| Standards Compliance | CE, FCC Class B, RoHS |
| Accessories Included | 2× Micro USB to USB-A cables, 2× wall-mount power adapters, 1× 20cm DP (M-F) copper extension cable |
