Description

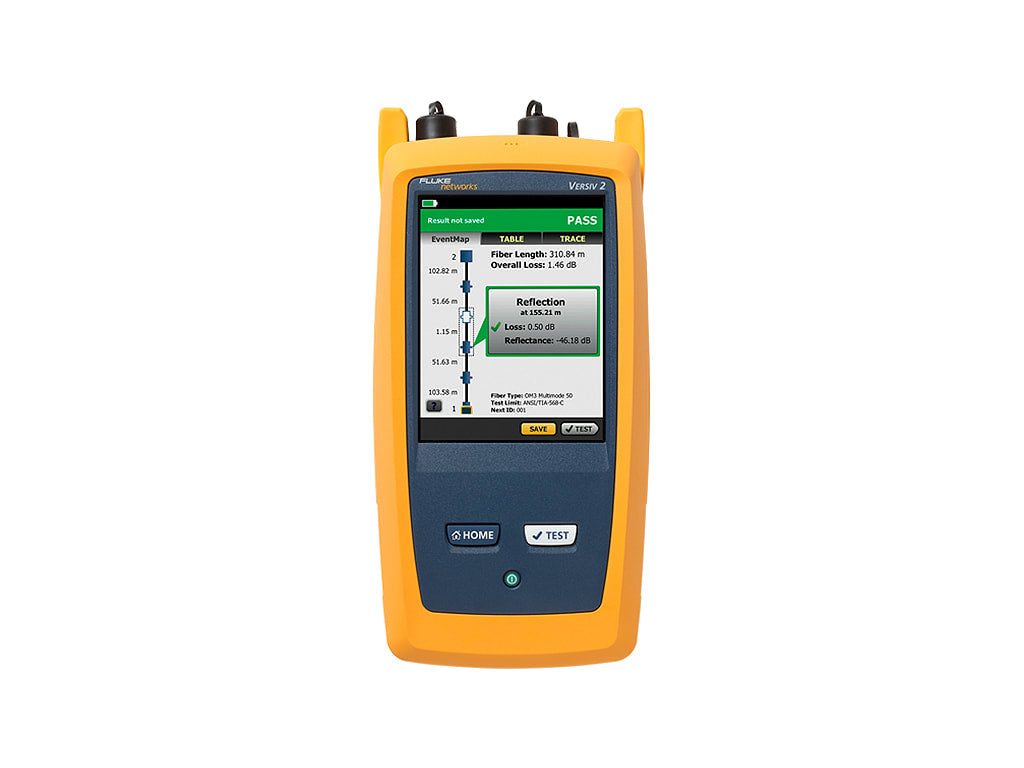

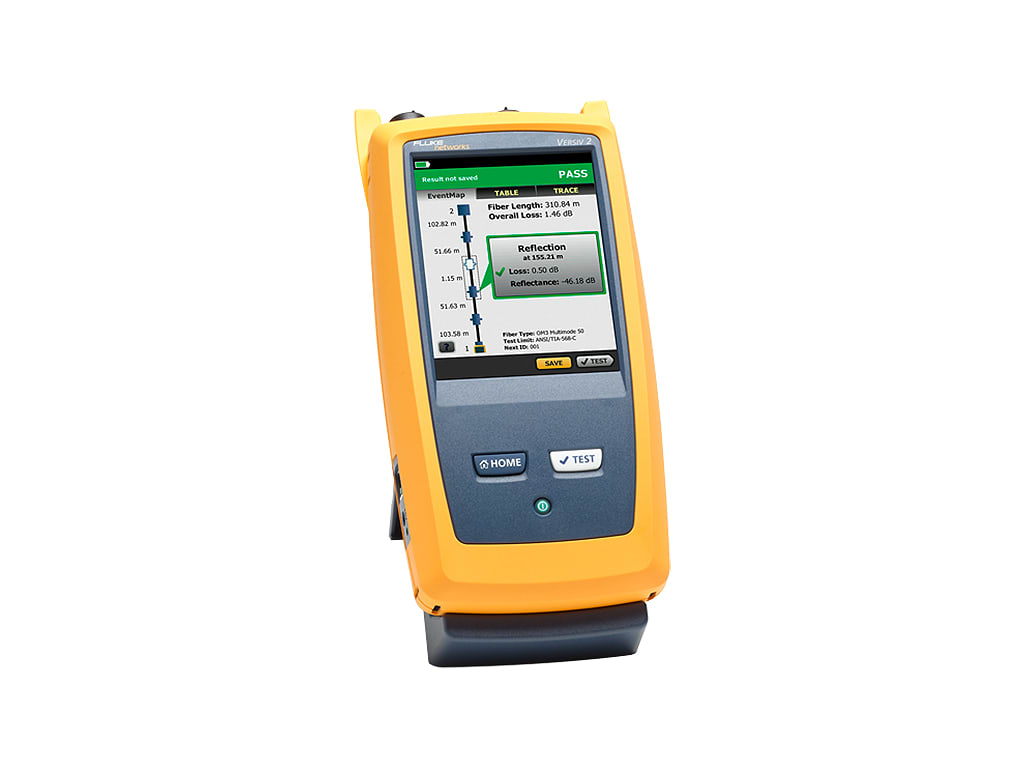

The Fluke Networks OFP2-100-SI OptiFiber Pro Single Mode OTDR V2 is an advanced Tier 2 (extended) fiber certification solution designed specifically for enterprise networks and data centers. Equipped with a Single Mode OTDR module, inspection camera, and Wi-Fi connectivity, it delivers unmatched ease of use and performance for high-bandwidth (40G/100G) architectures.
Its intuitive Taptive™ user interface simplifies setup and operation, enabling technicians of all skill levels to efficiently test, troubleshoot, and certify fiber infrastructure. With SmartLoop OTDR technology, the device automates testing of two fibers in a single run, eliminating unnecessary trips to the far end. The graphical EventMap™ provides an instant, easy-to-read analysis of events, including connectors, splices, and problem points.
Fully compatible with LinkWare™ Live, results can be uploaded, tracked, and shared in real-time for streamlined job management. Designed for reliability and precision, the OptiFiber Pro ensures your network’s fiber backbone is certified, clean, and ready for optimal performance.
| Specification | Details |
|---|---|
| Fiber Type | Single Mode |
| Wavelengths | 1310 nm ±25 nm, 1550 nm ±30 nm |
| Event Dead Zone | 0.6 m typical (1310/1550 nm) |
| Attenuation Dead Zone | 3.6 m typical (1310 nm), 3.7 m typical (1550 nm) |
| Dynamic Range | 32 dB (1310 nm), 30 dB (1550 nm) |
| Max Distance Range Setting | 130 km |
| Distance Measurement Range | 80 km (1310 nm), 130 km (1550 nm) |
| Reflectance Range | -14 dB to -65 dB typical |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths | 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns |
| Test Time (Auto Setting) | ~10 sec typical |
| Display Interface | Taptive™ Touchscreen |
| Additional Features | SmartLoop OTDR, Graphical EventMap™, LinkWare™ Live compatible |
| In the Box | Versiv Mainframe, SM OTDR Module, Inspection Camera, Wi-Fi, Cleaning Tools, Launch Cables, Accessories |
| Dimensions (Main Unit) | 17" L × 11" W × 9" H |
| Country of Origin | United States |
