Description

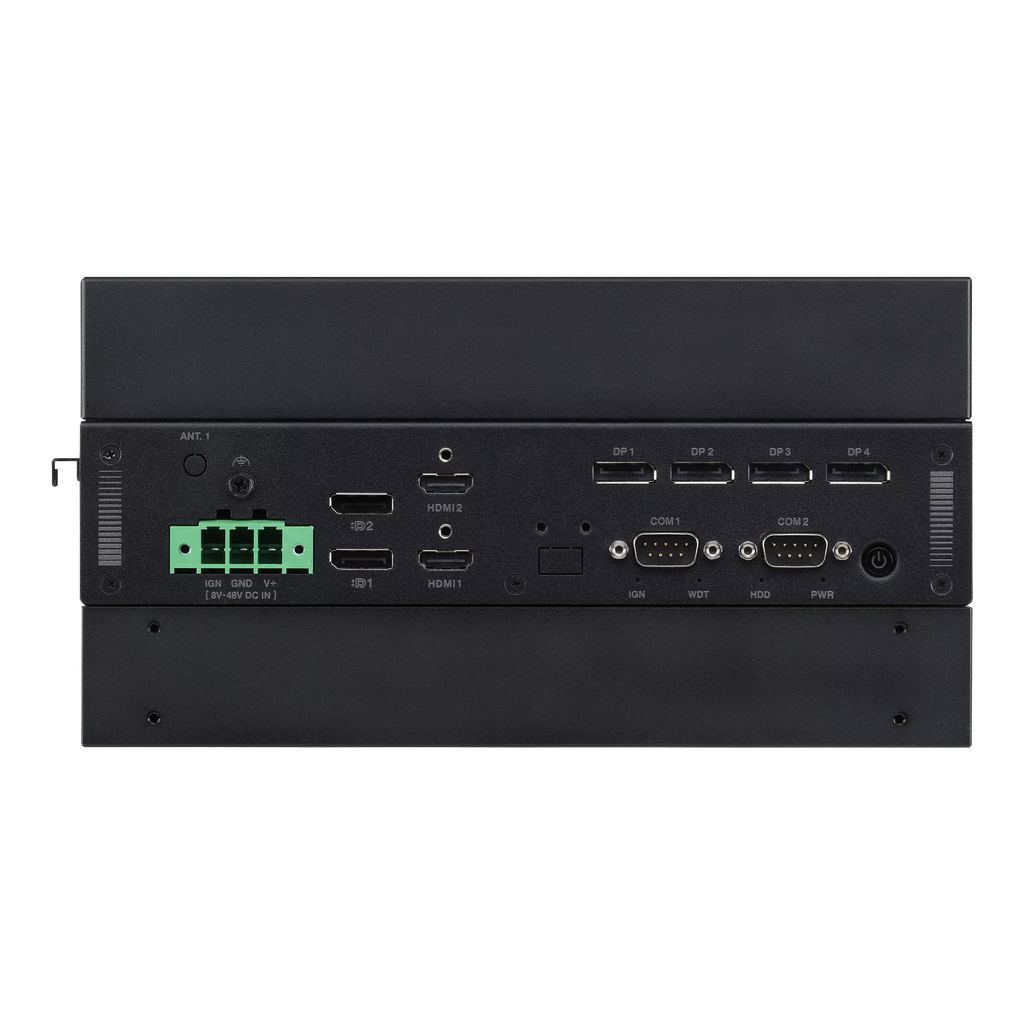

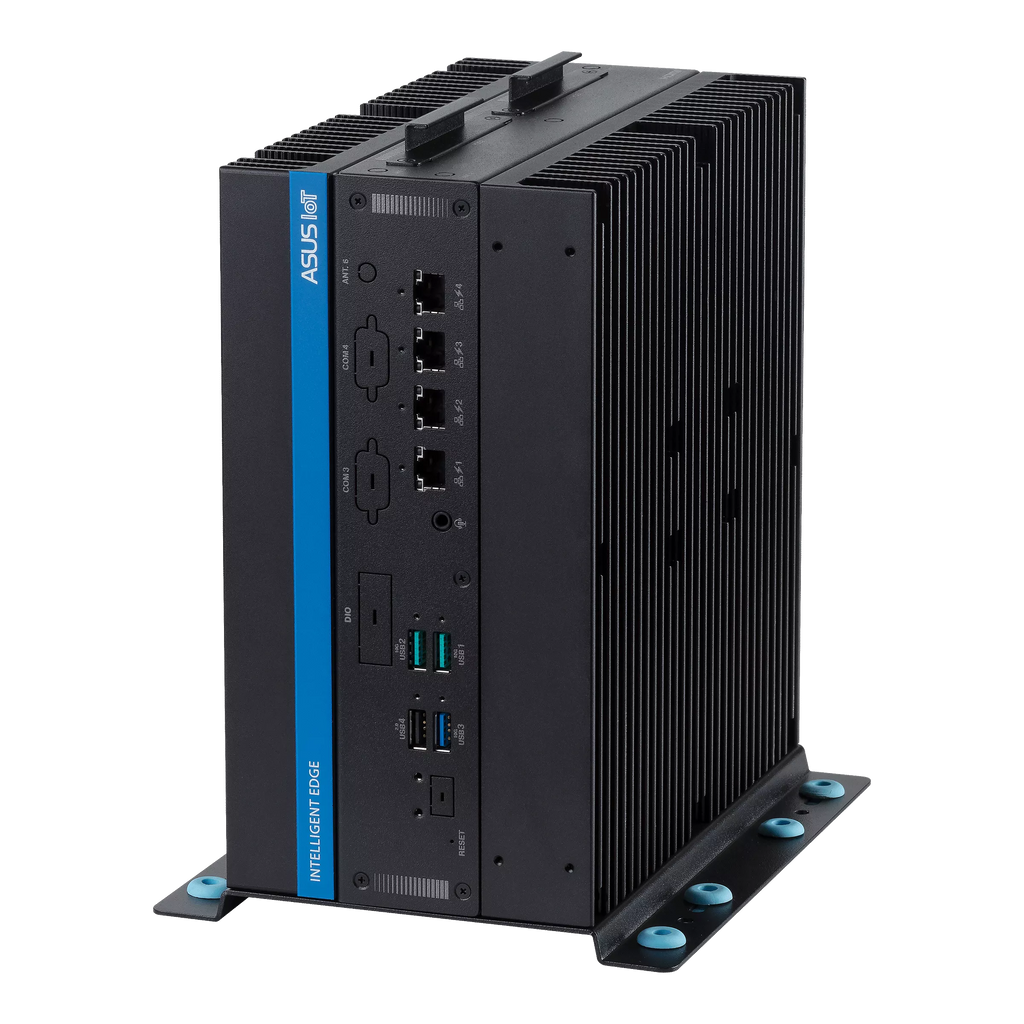

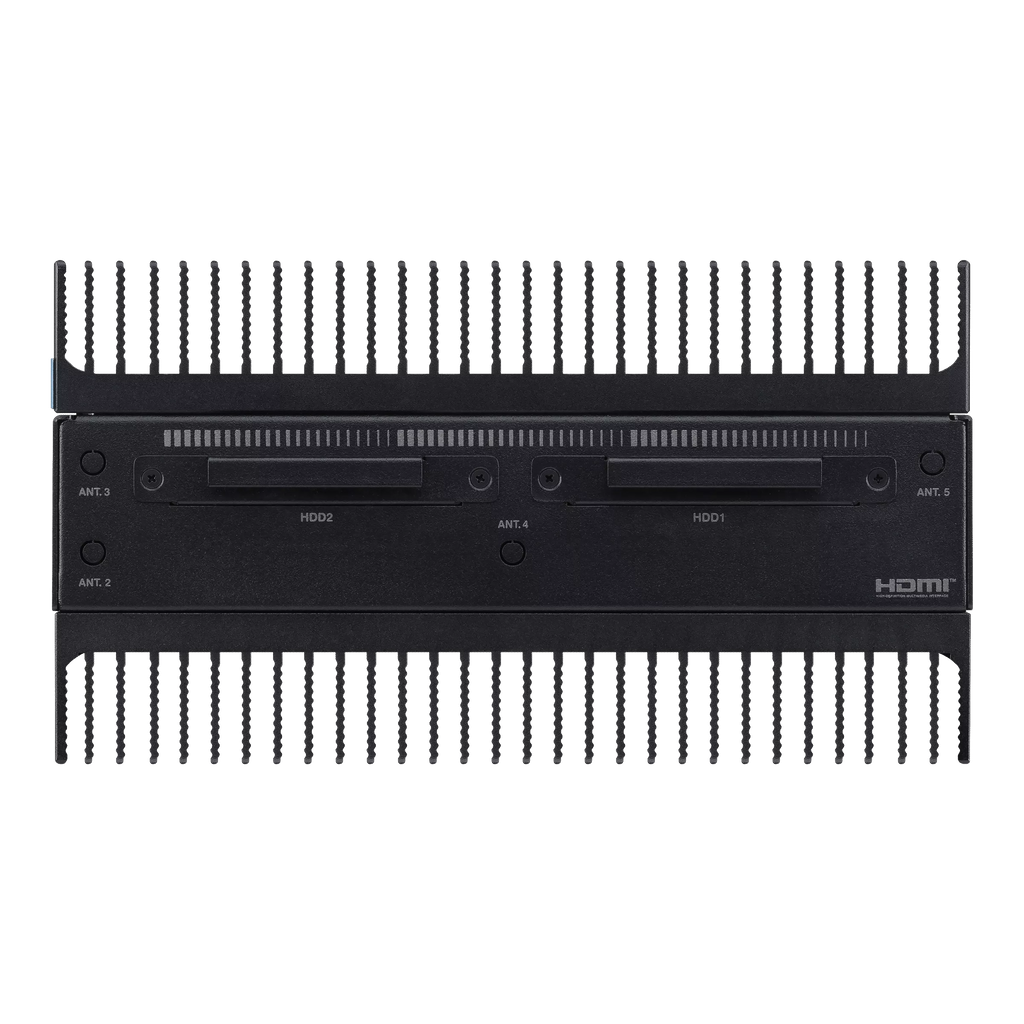

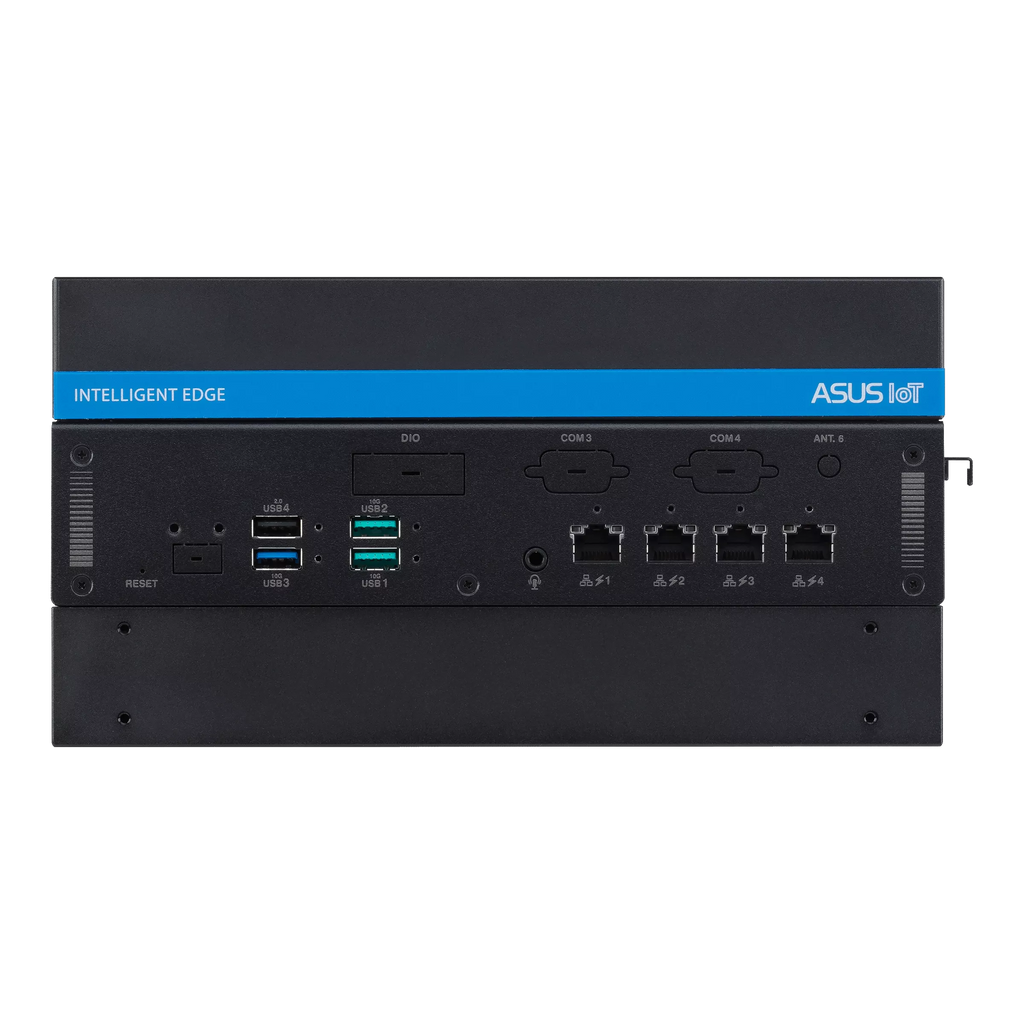

The ASUS PE3000G-I7BB is a rugged, fanless Edge AI computer engineered for high-performance industrial and AI-driven applications in harsh environments. Powered by the 12th Gen Intel® Core™ i7-12800HE processor, it delivers exceptional computing power for intelligent automation, machine vision, and edge inference tasks. Supporting NVIDIA® Ampere/Turing™ or Intel® Arc™ MXM GPUs, it offers advanced graphics and AI acceleration capabilities in a compact, thermally optimized chassis.
With DDR5 memory up to 64GB, triple 2.5GbE + 1GbE LAN ports (with optional PoE+), and a wide range 8–48V DC input with ignition control, the PE3000G-I7BB ensures reliable operation in automotive, manufacturing, and outdoor IoT deployments. It meets MIL-STD-810H standards for vibration and shock resistance, operates between -20°C to 60°C, and supports Windows 11/10 IoT Enterprise or Linux environments.
| Category | Details |
|---|---|
| Processor | Intel® Core™ i7-12800HE (14 cores, 20 threads, 45W TDP, up to 4.6 GHz) |
| Graphics | Integrated Intel® Iris® Xe Graphics; optional NVIDIA® Ampere/Turing™ or Intel® Arc™ MXM GPU |
| Memory | 2× SO-DIMM DDR5 4800 MHz, up to 64 GB |
| Storage | 2× hot-swappable 2.5" SATA (SSD/HDD), RAID 0/1 support • 1× M.2 2280 M Key PCIe Gen4 x4 (NVMe SSD) |
| Expansion Slots | 1× Mini PCIe (full size), 1× M.2 2230 E-key (Wi-Fi 5/6), 1× M.2 3042/3052 B-key (4G/5G with SIM), MXM PCIe x8 Gen4 |
| Display Outputs | 2× HDMI 1.4 (up to 4096×2304 @30Hz), 2× DP++ (up to 4096×2304 @60Hz), 4× DP (via optional MXM GPU) |
| Networking | 1× Intel® I219-LM (1 GbE), 3× Intel® I226-IT (2.5 GbE) with optional PoE+ support (100 W total budget) |
| USB Ports | 3× USB 3.2 Gen2 Type-A (10 Gbps, screw-lock), 1× USB 2.0 Type-A (screw-lock) |
| Audio I/O | Mic-in / Line-out |
| Serial Ports | 2× RS-232/422/485 DB9, 2× RS-232 DB9 (optional internal COM3/COM4 or CAN Bus module) |
| Digital I/O | 4× DI, 4× DO (with isolation, optional terminal block) |
| Power Input | 8–48 V DC input via 3-pin terminal block, built-in ignition control |
| Power Supply | Optional 330 W or 480 W adapter |
| Mounting Options | Desktop / Wall Mount (with anti-shock dampers) |
| Dimensions (W×D×H) | 240 × 230 × 125.7 mm |
| Weight | 8.2 kg |
| Operating Temperature | –20 °C to 60 °C (with 60 W MXM GPU and 45 W CPU) |
| Certifications | MIL-STD-810H vibration (5 Grms), shock (20 G), CE/FCC Class A/B, BSMI, CB, CE-LVD, RoHS |
| Operating System | Windows® 11 IoT Enterprise (64-bit), Windows® 10 IoT Enterprise (64-bit), Linux (by project support) |
| Other Features | Supports Intel® vPro / AMT, dTPM 2.0, Hardware Watchdog Timer, LED Indicators (PWR/Storage/WDT/Ignition) |
