Description

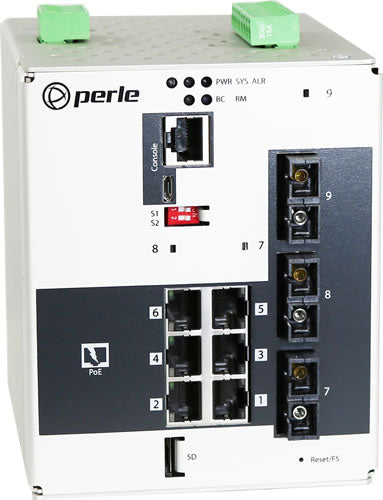

The Perle IDS-509G3PP6-C2MD05-SD160 is an industrial-grade, managed 9-port PoE+ Ethernet switch engineered for mission-critical networks. Designed with rugged reliability, it delivers deterministic network operation across demanding environments such as industrial automation, oil & gas, transportation, utilities, and military applications.
Equipped with six PoE/PoE+ capable 10/100/1000BTX RJ45 ports, the IDS-509GPP provides up to 30W per port, powering devices such as IP cameras, VoIP phones, and wireless access points. It also includes two multimode 1000BSX SC fiber ports and one single-mode 1000BZX SC fiber port supporting distances up to 160 km (100 miles), ensuring secure, interference-free connectivity.
Built with Perle’s PRO feature set, this switch enables advanced security, management, and redundancy, including RADIUS/TACACS+, IEEE 802.1X, VLANs, QoS, SNMPv3, and support for IPv6. Its fanless, corrosion-resistant aluminum case ensures durability, while dual redundant power inputs and hazardous location certification provide superior protection.
With plug-and-play fast setup and advanced CLI for network engineers, the IDS-509GPP delivers both ease of deployment and enterprise-level management in extreme operating conditions.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems, Inc. |
| Part Number (SKU) | 07017030 |
| Model | IDS-509G3PP6-C2MD05-SD160 |
| Form Factor | Industrial Managed PoE+ Ethernet Switch |
| Ethernet Ports | 6 × 10/100/1000BTX RJ45 (PoE/PoE+ capable, IEEE 802.3af/at, up to 30W per port) |
| Fiber Ports | 2 × 1000BSX Multimode SC (850nm, 550m / 1804 ft)1 × 1000BZX Single Mode SC (1550nm, 160 km / 100 miles) |
| PoE Capability | Power Sourcing Equipment (PSE), IEEE 802.3af/at compliant |
| Switching Features | VLANs, QoS, RMON, IGMP Snooping, IPv6/IPv4 support, N:1 port mirroring |
| Security Features | AAA (RADIUS/TACACS+), SSH, HTTPS, SNMPv3, IEEE 802.1X, Access Control Lists (ACL) |
| Management Options | Fast Setup (Plug & Play), CLI (Telnet/Serial), Web, SNMP |
| Reliability Features | P-Ring resiliency, dual redundant 48V DC power input with overload/reverse polarity protection |
| Case | Fanless, corrosion-resistant aluminum enclosure, DIN rail mountable |
| Operating Temperature | -10°C to 60°C (Standard Model)-40°C to 75°C (XT Models) |
| Certifications | Hazardous Location, Industrial Safety, CE, FCC, RoHS |
| Use Cases | Industrial automation, utilities, transportation, military, oil & gas, outdoor networking |
