Description

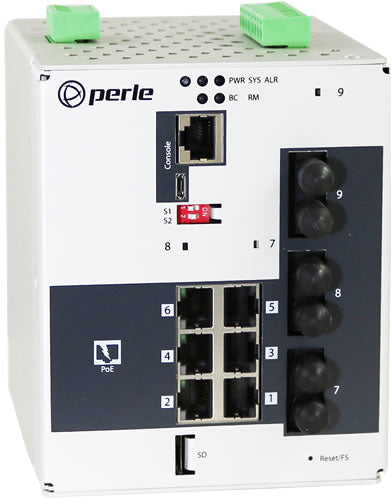

The Perle IDS-509G3PP6-T2SD10-SD70 is a rugged, industrial-grade managed PoE+ switch designed to deliver high-performance networking in harsh environments. With a total of 9 ports—including 6 Gigabit RJ45 ports with PoE/PoE+ support, 2 single-mode fiber ports (10 km, 1310nm, ST), and 1 single-mode fiber port (70 km, 1550nm, ST)—this switch provides flexible connectivity and extended distance networking capabilities.
Classified as Power Sourcing Equipment (PSE), it supplies up to 30W per port to power devices such as IP cameras, VoIP phones, and wireless access points. Featuring Perle’s PRO Software package, it supports advanced security, redundancy, and management protocols including AAA authentication, SSH, SNMPv3, IEEE 802.1x, VLANs, QoS, and IPv6.
Built for mission-critical industrial applications, the IDS-509G3PP6 operates reliably in environments with extreme temperature, shock, vibration, and EMI. Its fanless design, corrosion-resistant aluminum housing, redundant power inputs, and hazardous location certifications ensure maximum uptime and durability for use in manufacturing plants, military, transportation, energy, and outdoor deployments.
| Specification | Details |
|---|---|
| Manufacturer | Perle Systems, Inc. |
| Model / Part Number | IDS-509G3PP6-T2SD10-SD70 / 07017100 |
| Product Type | Industrial Managed PoE+ Ethernet Switch (PRO SW) |
| Total Ports | 9 |
| Copper Ports | 6 × 10/100/1000Base-T RJ45 (PoE/PoE+ PSE capable) |
| Fiber Ports | 2 × 1000Base-LX/LH (1310nm, ST, 10 km)1 × 1000Base-ZX (1550nm, ST, 70 km) |
| PoE Power | Up to 30W per port (IEEE 802.3af/at compliant) |
| Switching Features (PRO) | AAA (RADIUS/TACACS+), SSH, HTTPS, SNMPv3, IEEE 802.1x, ACLs, LLDP, GVRP, MSTP, IGMP Snooping, IPv6 Management |
| Resiliency & Management | VLAN, QoS, RMON, Port Mirroring, P-Ring, Local Alert Log |
| Security | Password strength enforcement, Port Security, Authentication protocols |
| Housing | Fanless, corrosion-resistant aluminum, DIN rail mountable |
| Power Input | Dual redundant 48 VDC with reverse polarity & overload protection |
| Operating Temperature | -10°C to 60°C (standard)-40°C to 75°C (XT models) |
| Certifications | Programmable Controller Safety, Hazardous Location Certified |
| Applications | Industrial automation, transportation, government, military, oil & gas, mining, and outdoor networks |
