Description

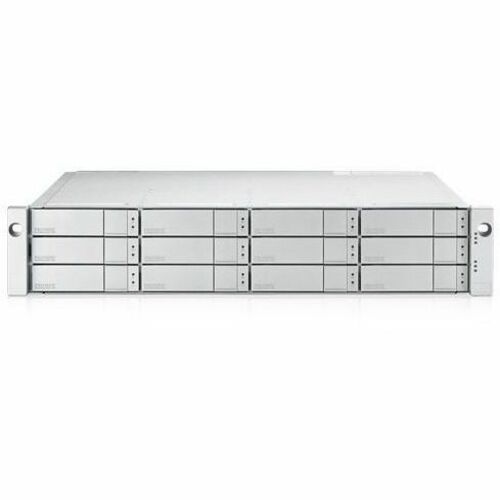

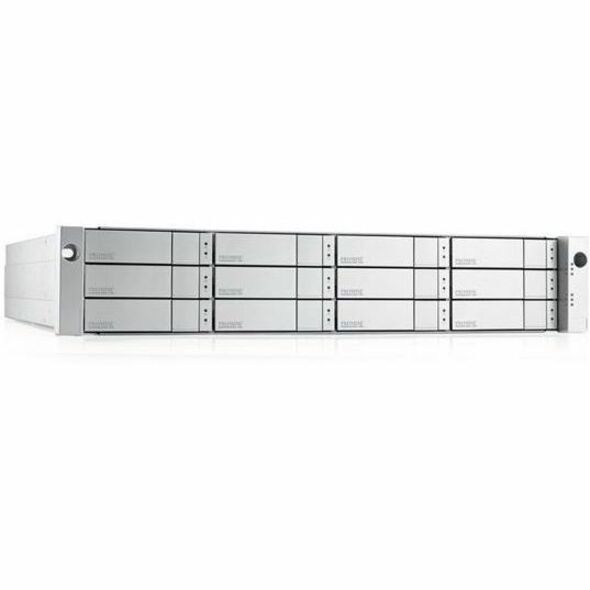

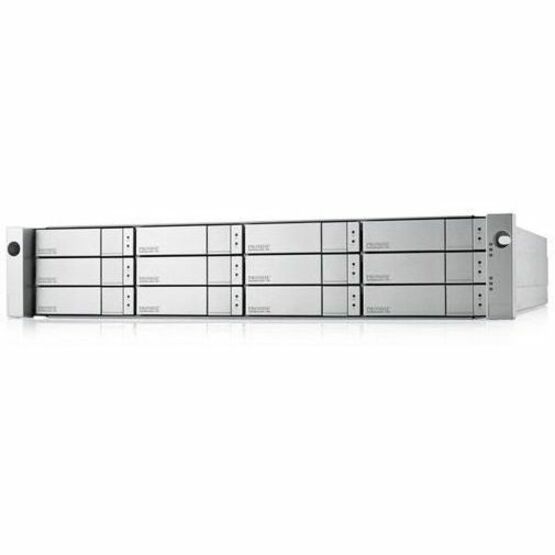

The Promise VTrak E5800FDQS14 is a high-performance SAN storage solution tailored for modern enterprises that demand scalability, reliability, and virtualization readiness. Outfitted with 24 x 14TB HDDs (336TB total) and powered by dual 12Gb/s SAS controllers and four 16Gb Fibre Channel ports, it delivers exceptional sequential throughput up to 12GB/s read and 5.3GB/s write, with over 540K IOPS read.
Ideal for virtualization platforms like VMware, Hyper-V, and Citrix XenServer, the VTrak E5800FD is also designed for cloud and data center environments. Its active-active dual controllers, RAID support (0/1/5/6/10/50/60), and redundant architecture ensure business continuity even under demanding workloads. With 90%+ power efficiency and advanced protocol support (SSH, SNMP, LDAP), this 4U rackmount system delivers both performance and cost-efficiency.
| Specification | Details |
|---|---|
| Manufacturer | Promise Technology |
| Part Number (SKU) | E5800FDQS14 |
| Product Series | VTrak E5000 |
| Product Type | SAN Storage System |
| Drive Bays | 24 x 3.5" bays (hot-swappable) |
| Installed Drives | 24 x 14TB HDDs |
| Total Capacity | 336 TB |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, 60 |
| Controller Type | Dual 12Gb/s SAS Controllers |
| Fibre Channel Ports | 4 x 16Gb/s FC |
| SAS Expansion Ports | 2 x 12Gb/s |
| Network Interface | Gigabit Ethernet (RJ-45) |
| Protocols Supported | Telnet, LDAP, SSH, SNMP, CIM |
| Form Factor | 4U Rackmount |
| Dimensions (HxWxD) | 6.9" x 17.5" x 20" |
| Weight | 109.35 lbs |
| Environmental Compliance | RoHS, WEEE |
| Warranty | 3-Year Limited (onsite and extended options available) |
| Power Efficiency | Up to 90% (Energy Efficient Power Supplies) |
| Condition | New and Factory Fresh |
