Description

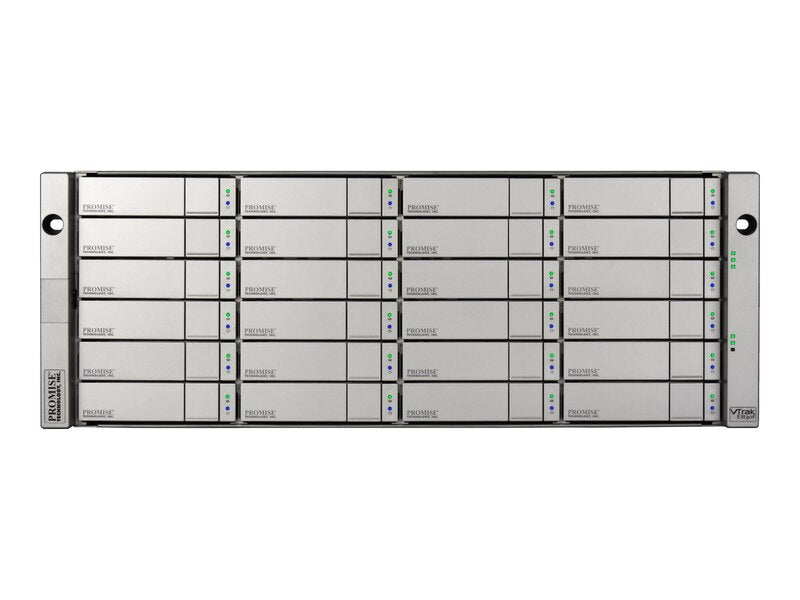

Boost your storage capacity with the Promise VTrak Jx30 Expansion Chassis. Featuring 96TB across 24 NL-SAS drives, JBOD RAID support, and 6G SAS performance in a 4U rack-mountable design.
| Specification | Details |
|---|---|
| Brand | Promise Technology |
| Product Line / Series | VTrak / Jx30 |
| Model / Part Number | VTJ830sD / J830SDQS4 |
| Product Type | DAS Storage System (Expansion Chassis) |
| Installed HDDs | 24 x 4TB NL-SAS 7200 RPM |
| Total Storage Capacity | 96 TB |
| Drive Interface | Near Line SAS (NL-SAS) |
| Host Interface | Mini-SAS |
| RAID Support | Yes (JBOD) |
| Expansion Bays | 24 x 2.5"/3.5" |
| Chassis Form Factor | Rackmount, 4U |
| Dimensions (HxWxD) | 6.9" x 17.6" x 20" |
| Weight | 57.30 lbs (shipping: 112 lbs) |
| Power Supply | Dual 750W, 110V/220V AC |
| Cooling | Dual redundant fans |
| Protocols Supported | SES, SMP |
| Compliance | CE, FCC Class A, UL/cUL, RoHS, WEEE |
| Warranty | 3-Year Limited |
| Condition | New and Factory Fresh |
