Description

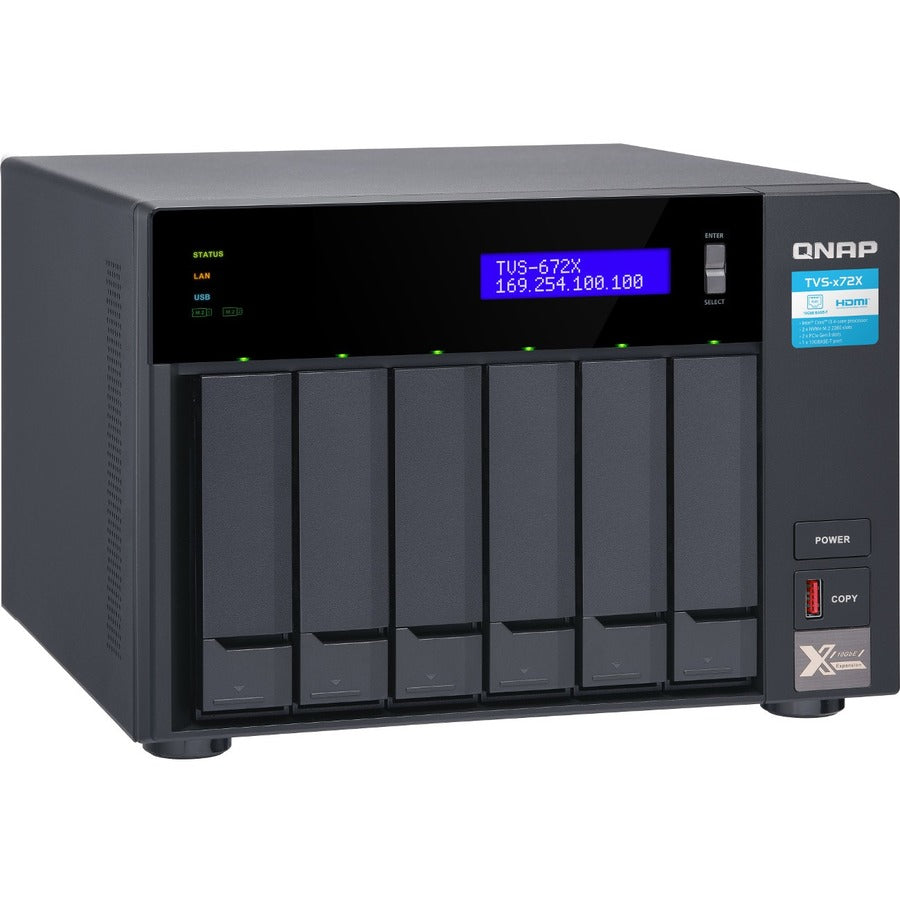

QNAP TVS-672X-i3-8G SAN/NAS Storage System
High-performance multifunctional 10GbE NAS featuring M.2 NVMe SSD caching and 4K HDMI output for virtualization and multimedia
Powered by an Intel® Core™ i3 processor, the high-performance TVS-672X NAS features built-in 10GbE connectivity for boosted virtualization performance and streamlined backup and application workflows from multiple workstations. The TVS-672X also supports M.2 NVMe SSDs for cache acceleration, PCIe expansion, multi-cloud backup, 4K HDMI 2.0 output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable, and multifunctional NAS solution.
-
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization, intensive file access, large backup/restoration tasks, and media transfer.
-
Dual M.2 PCIe Gen 3 x2 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance.
-
PCIe expansion allows for 2.5/5/10/25GbE network cards, QM2 card, QXP storage expansion cards, or graphics cards.
-
4K media playback and real-time transcoding; display multimedia content saved on the NAS via HDMI 2.0 (4K @60Hz) output.
-
Host multiple virtual machines and containers to run a wide range of applications and services.
-
A business-class backup center supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).
Quad-core 3.1 GHz processor with up to 64 GB memory
The TVS-672X adopts an Intel® Core™ i3-8100T quad-core 3.1 GHz processor with dual-channel DDR4 memory (expandable to 64 GB) to tackle heavy multitasking workloads. AES-NI encryption support boosts encryption performance to secure NAS data without impacting overall system operations.
Build a budget-friendly 10GbE environment
The TVS-672X has two Gigabit ports and one 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M) port for high-speed networking to satisfy bandwidth-demanding applications (including virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission). QNAP's managed and unmanaged 10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration. The TVS-672X also include four USB 3.2 Gen 2 ports with up to 10Gb/s transfer speeds, allowing compatibility with newer, faster USB drives/expansion enclosures for transferring large media files.
Get performance benefits from SSD caching and Qtier Technology
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or two M.2 NVMe 2280 SSDs (sold separately) in the TVS-672X. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards, allowing you to configure your M.2 SSDs in a RAID 5/6 array to achieve higher sequential speed or a read-only cache speed similar to the performance of a RAID 10 array while maintaining high storage efficiency.
SSD over-provisioning (Over-provisioning)
Add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer-grade SSDs!
SSD cache acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volumes. This is perfect for IOPS-demanding applications including databases and virtualization.
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Holds up to 6 HDDs
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- Smart and responsive Intel Core i3 3.10 ghz, now switch between multiple applications in a swift second
- RAID technology - data reliability, fault tolerance and improved overall performance
- Tower form factor requires minimal configuration and can be easily customized and upgraded to ensure maximum efficiency
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- QTS 4.5.1 OS makes you more productive and creative
