Description

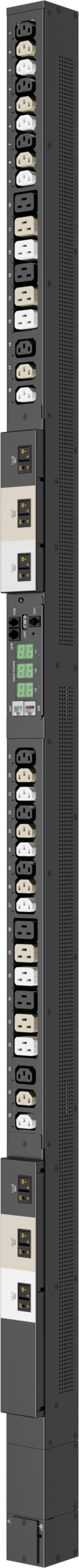

The Server Technology® PRO2 C2X36TE-DFME2M99 Switched PDU delivers reliable power distribution with advanced monitoring and outlet control designed for high-density data centers. Featuring HDOT Cx outlets (hybrid of C13/C19) for maximum flexibility, this PDU enables remote management of outlet power, automated alerts, and per-inlet power sensing with PIPS® technology.
With multi-protocol network connectivity (HTTP(S), SSH, Telnet, SNMP, LDAP(S), Syslog, and more), integrated temperature/humidity probe support, and branch circuit monitoring, IT teams gain full visibility into rack power usage and environmental conditions.
The hot-swap network card, auto-flip LED current display, and alternating-phase outlets simplify maintenance and load balancing, while compliance with UL and IEC safety standards ensures branch circuit protection. Designed for 60 °C environments, the PRO2 Switched PDU supports star multi-linking for connecting up to four circuits under a single IP address, delivering scalability and resilience for mission-critical facilities.
| Specification | Details |
|---|---|
| Brand | Server Technology |
| Product Line | PRO2 |
| Model | C2X36TE-DFME2M99 |
| Product Type | Switched PDU |
| Outlets | 36 HDOT Cx (hybrid C13/C19) |
| Plug/Connector Type | IEC (varies by configuration) |
| Phases Supported | Three-phase |
| Power Monitoring | PIPS® (Per Inlet Power Sensing) |
| Outlet Control | Remote switching per outlet/group |
| Network Interfaces | HTTP(S), SSH, Telnet, SNMP v2c/v3, LDAP(S), TACACS+, RADIUS, Syslog, RS-232 serial, (S)FTP, SMTP |
| Environmental Monitoring | Supports 2x external temp/humidity probes per unit |
| Branch Current Monitoring | Yes, with SNMP/email alerts |
| Circuit Protection | UL 489 magnetic-hydraulic breakers or UL 248 fuses |
| Display Features | Auto-flip current per phase (LED) |
| Multi-Linking | Up to 4 circuits with 1 IP (Primary + Expansion PDUs) |
| Temperature Rating | Tested for safe operation at up to 60 °C |
| Mounting Options | Standard button mounts; custom brackets supported |
| Color Options | Black, White, Red, Green, Blue, Yellow |
| Compliance | UL and IEC 62368-1 safety standards |
