Description

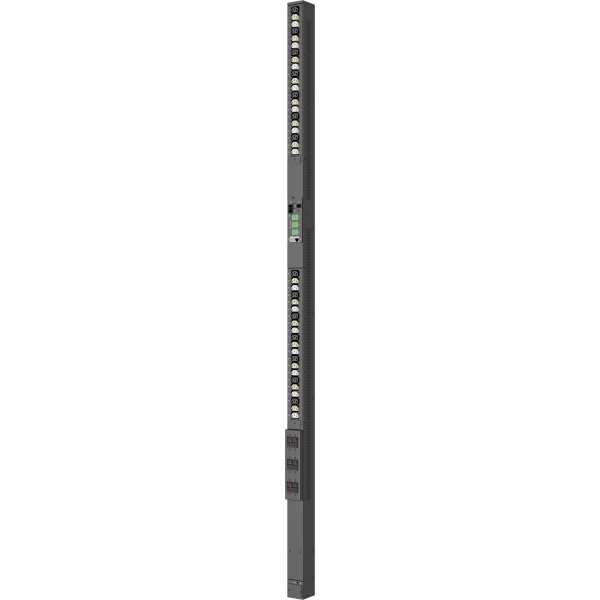

The Server Technology® PRO2 C2S36CE-DFME2M66 Smart PDU is a high-density, networked power distribution unit designed for mission-critical data centers. Equipped with 36 outlets (24 x IEC C13, 12 x IEC C19) and Per Inlet Power Sensing (PIPS®) technology, it delivers billing-grade accurate measurement of current, voltage, power, and energy usage.
This Primary model supports Star Multi-Linking, enabling up to four circuits to be managed under a single IP address when paired with optional Link units. IT staff benefit from hot-swap network cards, SNMP alerts, temperature/humidity monitoring, and branch circuit protection. Built with High Density Outlet Technology (HDOT®), alternating-phase outlets, and a 60°C high-temperature rating, it ensures maximum uptime, efficiency, and flexibility in demanding environments.
Ideal for organizations requiring secure, reliable, and scalable rack power distribution, the C2S36CE-DFME2M66 is backed by Server Technology’s industry-leading quality and support.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc |
| Brand | Server Technology |
| Product Series | PRO2 |
| Model | C2S36CE-DFME2M66 |
| Type | Smart PDU – Primary |
| Outlets | 36 total – (24) IEC C13 ≤12A @208V (15A peak), (12) IEC C19 ≤16A @208V (20A peak) |
| Input Voltage | 208V |
| Input Plug | CS8365, 3P+G, 50A |
| Input Current (Rated) | 40A |
| Input Power Capacity | 14.4 kW |
| Branch Circuit Protection | (6) UL 489 2-pole, 20A breakers |
| Power Monitoring | PIPS® – Current, Voltage, Power (W/VA), Energy, PF, Crest Factor |
| Networking Interfaces | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Syslog, LDAP(S), RS-232 |
| Sensors Supported | (2) External Temp/Humidity Probes (10ft/3m) |
| Dimensions (HxWxD) | 70.0 x 2.2 x 2.5 in (1778 x 56 x 64 mm) |
| Operating Temp | 32°F–140°F (0°C–60°C) |
| Storage Temp | -22°F–176°F (-30°C–80°C) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended options available) |
