Description

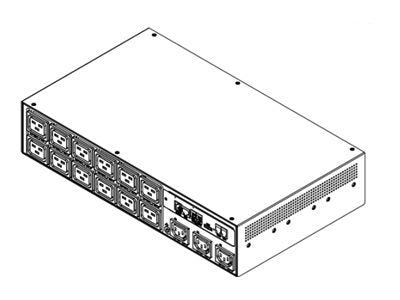

The Server Technology® PRO1 Smart PDU (Primary) delivers advanced rack power distribution with intelligent monitoring and reliable protection for mission-critical data center environments. Featuring PIPS® (Per Inlet Power Sensing) technology, this unit provides billing-grade accurate measurement of current, voltage, power, crest factor, and energy usage per inlet.
Equipped with 15 outlets (12 x IEC C19, 3 x IEC C13) and a 32A 400V Wye input, this PDU supports up to 22.0 kW of power capacity. Built-in network connectivity ensures real-time access via HTTP/HTTPS, SSH, SNMP, Telnet, and Syslog, with hot-swappable network cards for uninterrupted uptime.
Designed for operational safety and flexibility, the unit includes branch circuit protection (UL 489), high-retention locking outlets, and optional temperature/humidity probes with SNMP/email alerts. Its compact 2U rack form factor makes it ideal for dense IT environments.
The PRO1 Primary PDU can also link to up to three expansion units, extending network access and providing seamless power distribution without daisy-chain risks. Backed by a 2-year limited warranty, this PDU is engineered to meet global safety and EMC standards, ensuring reliability for enterprise deployments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO1 Smart PDU |
| Model / SKU | C1S15HN-4PJN5BC3-013 (Primary) |
| Form Factor | Rack-mountable, 2U |
| Input Voltage | 400V (Wye, 3P+N+PE) |
| Input Frequency | 50/60 Hz |
| Input Plug | IEC 60309 32A, 6Hr |
| Input Current (Rated) | 32A |
| Power Capacity | 22.0 kW |
| Outlets | 12 × IEC C19 (≤16A), 3 × IEC C13 (≤10A) |
| Branch Circuit Protection | 6 × 20A UL 489 magnetic-hydraulic breakers |
| Monitoring | PIPS® per-inlet sensing (Current, Voltage, Power, Crest Factor, Energy) |
| Network Access | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, Syslog, FTP/SFTP, LDAP(S), RADIUS, TACACS+ |
| Hot-Swap Network Card | Yes |
| Environmental Monitoring | Supports 2 × T/H probes (SNMP/email alerts) |
| Indicators | Auto-flip LED per-phase current display |
| Communications Ports | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, Link port |
| Dimensions (HxWxD) | 3.5 × 17.2 × 10.1 in (89 × 437 × 257 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Certifications | EN/IEC 62368-1, UL 489, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-Year Limited Parts & Labor (extended options available) |
