Description

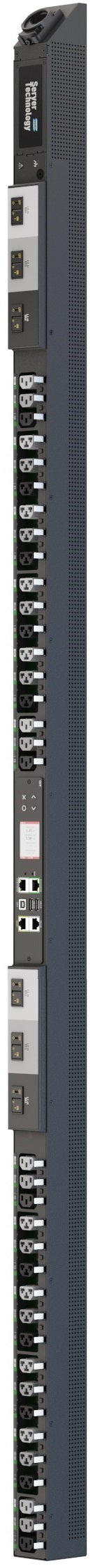

The Server Technology PRO4X Smart PDU (C4S36RA-GPBD2FE1) delivers advanced power distribution and monitoring capabilities for modern data centers. Built on the cutting-edge Xerus™ network interface platform, this PDU provides remote access to power status, input and branch current monitoring, and intelligent alerts.
Featuring HDOT Cx hybrid outlets that support both C14 and C20 plugs, and RamLock™ locking mechanisms for secure connections, it ensures maximum flexibility and safety. The 45° angled infeed reduces strain while improving accessibility, and the hot-swappable controller keeps your PDU fully operational during maintenance.
Engineered with branch circuit protection, alternating-phase outlets for load balancing, and environmental sensor integration, this PDU is designed for high-density deployments. With multi-unit linking (up to 16 PDUs) through a single IP, per-inlet power sensing (PIPS®), and waveform capture, it provides unparalleled visibility into power usage and quality.
Ideal for mission-critical facilities, the PRO4X Smart PDU offers robust security features (256-bit AES encryption, SSH, SSL, LDAP, RADIUS, and SNMPv3), a multi-color LCD display, and support for Legrand’s plug-and-play SmartSensors for temperature, humidity, airflow, leak detection, and more.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Smart PDU |
| Model / SKU | C4S36RA-GPBD2FE1 |
| Outlets | 24 × HDOT Cx (≤16A @230V), 12 × IEC C13 (≤10A @230V) |
| Input Voltage | 220/380V – 240/415V |
| Input Plug | IEC 60309 3P+N+G 6Hr (32A Global / 30A North America) |
| Input Power Capacity | 22.0 kW (Global) / 17.3 kW (North America) |
| Input Current Rating | Global: 32A / North America: 24A |
| Frequency | 50/60 Hz |
| Network & Security | Dual Ethernet (10/100/1000 Mbps), Optional Wi-Fi, HTTPS, SNMP v2/v3, SSH, LDAP, RADIUS, Syslog |
| Controller | Hot-swappable with LCD interface |
| Measurement | PIPS® per-inlet power sensing; ±0.2% accuracy (current/voltage) |
| Features | RamLock locking outlets, RGB LED outlet indicators, Waveform capture, Alternating-phase outlets |
| Branch Protection | UL 489 compliant 2-pole, 20A breakers (≤16A per branch) |
| Dimensions (HxWxD) | 70.0 in × 2.2 in × 2.5 in (1778 × 56 × 64 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA, CE, UKCA, FCC Class A, RoHS, IEC/EN 60947-2 |
| Warranty | 2-year limited parts & labor |
