Description

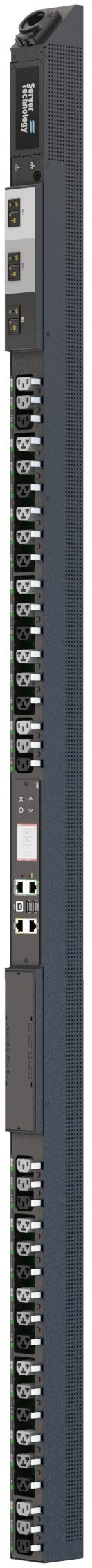

The Server Technology PRO4X C4G36RA-EPBE2FE2 Switched POPS PDU delivers next-generation power management for high-density data centers. Built on the advanced Xerus network interface platform, it provides secure remote access to power usage, outlet status, and branch current monitoring, with per-inlet and per-outlet sensing for precise control.
Equipped with HDOT Cx hybrid outlets (supporting both C13 and C19 plugs), RamLock self-locking outlets, and 45-degree angled infeed, this PDU ensures maximum flexibility, secure connections, and optimized rack space management. Hot-swappable controllers, waveform capture, alternating-phase outlets, and RGB LED outlet indicators enhance operational reliability.
With AES-256 encryption, SSH/SSL, SNMP support, and multi-unit cascading, it meets the most demanding security and scalability requirements. Supporting operation in up to 60°C environments and offering robust environmental monitoring with Legrand SmartSensors, this PDU is built for modern mission-critical infrastructure
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Model / SKU | PRO4X C4G36RA-EPBE2FE2 |
| Product Type | Switched POPS PDU |
| Outlets | (12) x IEC C13 (≤10A @230V L-N)(24) x HDOT Cx Hybrid (≤16A @230V L-N) |
| Input Voltage | 230V |
| Input Current | 32A |
| Input Power Capacity | 7.3 kW |
| Input Plug | IEC 230V / 32A 2P+PE 6Hr |
| Frequency | 50/60 Hz |
| Infeed Design | 45° Angled Infeed |
| Power Monitoring | PIPS® (Per Inlet Power Sensing)POPS® (Per Outlet Power Sensing)Waveform capture |
| Security & Networking | Dual Ethernet (10/100/1000 Mbps), optional Wi-Fi, SNMPv2/v3, SSH, HTTPS, RADIUS, LDAP, Syslog |
| Control Features | Individual/group outlet control, reboot capability, cascading up to 16 PDUs via USB/Ethernet |
| Indicators | RGB LED outlet indicators, multi-color LCD |
| Environmental Monitoring | Supports up to 12 Legrand SmartSensors (temperature, humidity, airflow, water, etc.) |
| Branch Circuit Protection | UL 489 magnetic-hydraulic circuit breakers (≤16A, 10 kAIC) |
| Physical Dimensions | 70.0 in (1778 mm) H Ă— 2.2 in (56 mm) W Ă— 2.5 in (64 mm) D |
| Operating Environment | 0°C to 60°C (32°F to 140°F), 5–90% RH, <3000m elevation |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited (parts & labor), extended options available |
