Description

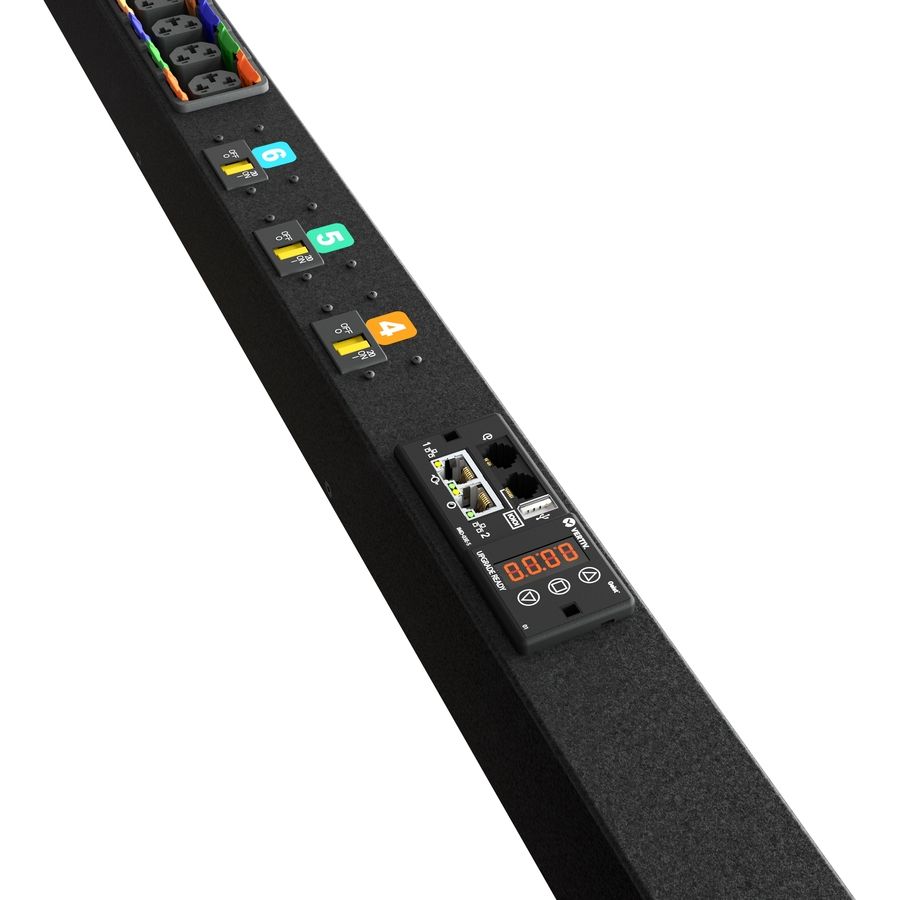

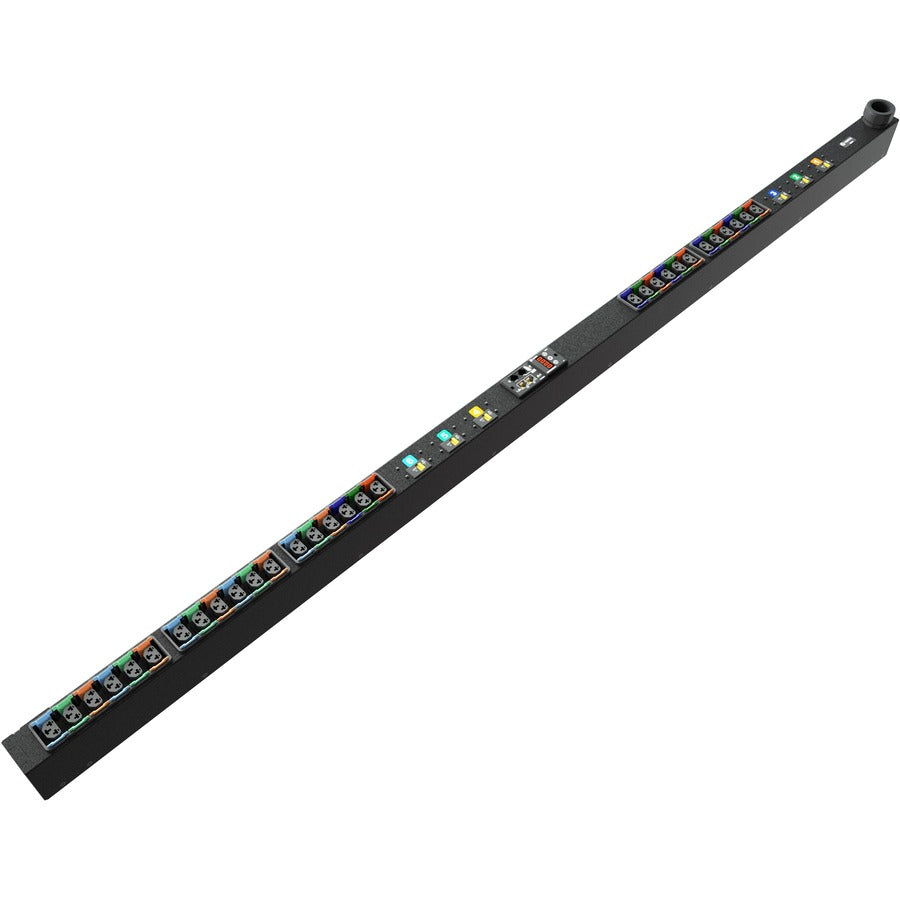

The Vertiv Geist VP46301 Rack PDU is a high-performance power distribution unit designed for demanding data center and server rack environments. This 0U vertical mount PDU features 30 hybrid C13/C19 outlets, supporting both C14 and C20 plugs to maximize flexibility and compatibility. Engineered with 60A 208V Delta 3-phase input, it delivers up to 17.2kW of reliable power with overcurrent protection and a splash-proof 3P+E (IP44) plug.

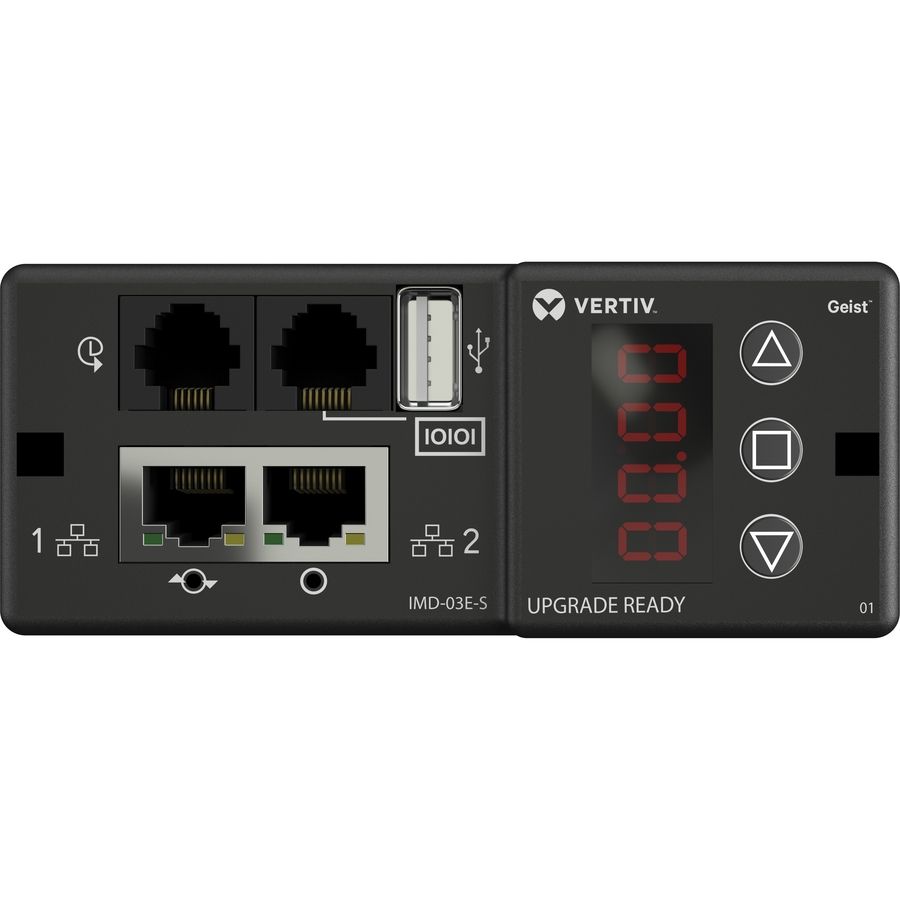

Built for resiliency, this monitored rPDU supports unit-level remote power monitoring and integrates with optional environmental sensors. Its hot-swappable Interchangeable Monitoring Device (IMD) ensures easy upgrades, while high-retention outlets and P-Lock compatibility prevent accidental disconnections.
Compliant with global standards and protocols including SNMP, SSH, RADIUS, and Syslog, the VP46301 is ideal for modern IT infrastructure where uptime and intelligent management are critical.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | VP46301 |
| Product Type | Monitored Rack PDU |
| Series / Model | Geist / NI30677 |
| Outlet Type | 30 x Combination C13/C19 (accepts C14 & C20 plugs) |
| Plug Type | 3P+E (IP44) |
| Input Voltage | 208V AC (Delta, 3-phase) |
| Input Current | 60A |
| Output Voltage | 200-240V AC |
| Power Capacity | 17.2 kW |
| Remote Monitoring | Yes (SNMP, HTTPS, SSH, Syslog, etc.) |
| Environmental Monitoring | Optional with sensors |
| Mounting Type | Vertical, 0U rack-mount or cabinet-mount |
| Cord Length | 10 ft |
| Dimensions (H x W x D) | 70" x 2.1" x 3" |
| Weight | 32 lbs |
| Certifications | UL, c-UL 60950, FCC Part 15 Class A |
| TAA Compliant | Yes |
| RoHS / China RoHS | Compliant |
| Warranty | 5-Year Limited |
| Country of Origin | United States |
