Warranty
This PSU will be covered by the Cisco's standard warranty terms.

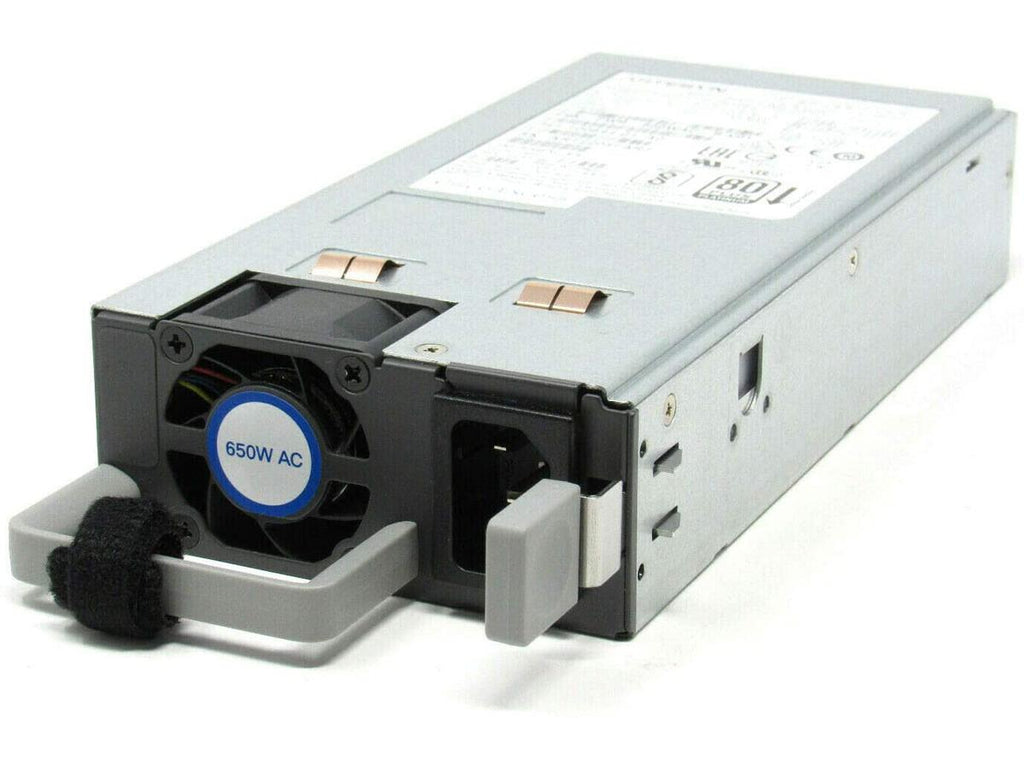

An alternate 650W AC Power Supply Unit (PSU) which has similar specification as the existing C9K-PWR-650WAC-R has been developed for Cisco Catalyst 9500 Series Switches. This alternate PSU has been fully tested and qualified with Cisco Catalyst 9500 Series Switches that support 650W AC PSU. This PSU will have the same Product ID (PID) as the existing C9K-PWR-650WAC-R.
Please see below for details of this PSU, including technical specifications and warranty information.
This PSU will be covered by the Cisco's standard warranty terms.
Characteristic |
Specification |
---|---|
AC input voltage |
Nominal range: 100 and 240 VAC (Range: 90-132 VAC, 180-264 VAC) |
AC input frequency |
Nominal range: 50 to 60 Hz (Range: 47-63 Hz) |
Maximum AC input current |
7.6 A at 90 - 132 VAC, 3.65 A at 180 - 264 VAC |
Maximum input volt Amperes |
760 VA at 100 VAC |
Maximum output power per power supply |
650 W |
Maximum in-rush current |
11 A (sub-cycle duration) |
Maximum hold-up time |
12 ms at 650 W |
Power supply output voltage |
12 VDC |
Power supply standby voltage |
12 VDC |
Efficiency rating |
Climate Savers Platinum Efficiency (80Plus Platinum certified) |
Form factor |
RSP1 |
