Description

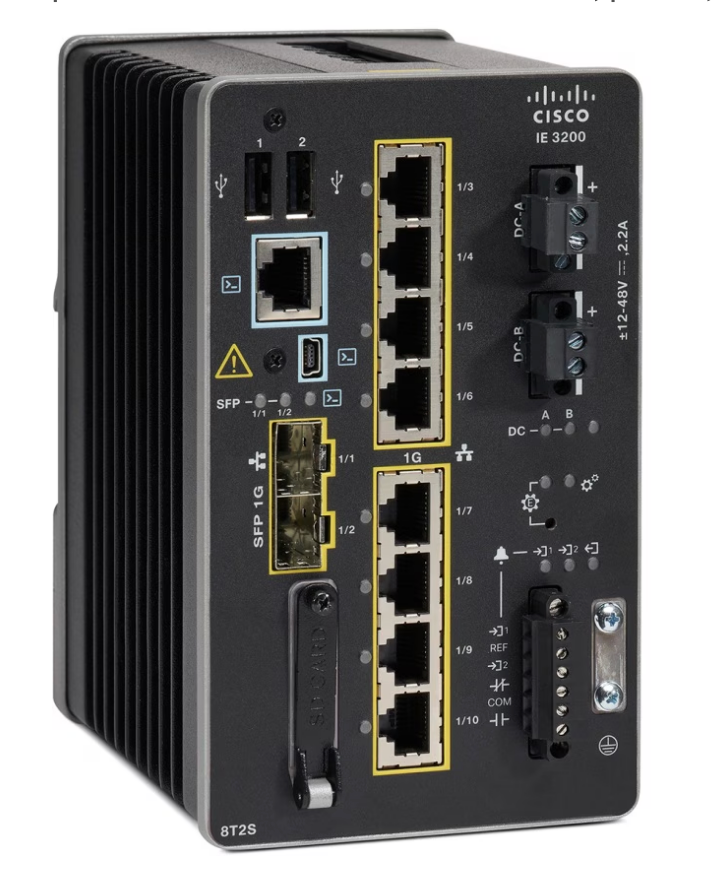

The Cisco Catalyst IE3200 Rugged Series switch IE-3200-8T2S-E is a hardened industrial Ethernet switch designed for demanding environments such as manufacturing, transportation, energy, utilities, and outdoor deployments. Featuring 8 Gigabit Ethernet copper ports and 2 Gigabit SFP uplinks, this compact platform delivers reliable, high-speed connectivity for industrial automation, IP surveillance, wireless backhaul, and extended enterprise networks.
Built on Cisco IOS XE, the IE3200 provides advanced security, modern management capabilities, and industrial-grade durability with fanless operation and wide temperature tolerance. The IE-3200-8T2S-E is an ideal solution for organizations requiring resilient switching at the network edge.
| Specification | Details |
|---|---|
| Brand | Cisco |
| Product Series | Catalyst IE3200 Rugged Series |
| Model / SKU | IE-3200-8T2S-E |
| Product Type | Industrial Rugged Ethernet Switch |
| Total Ports | 10 Ports |
| Downlink Ports | 8 × 10/100/1000 Gigabit Ethernet RJ45 |
| Uplink Ports | 2 × 100/1000 Gigabit SFP |
| PoE Support | No (Non-PoE Model) |
| Software License | Network Essentials (Default) |
| Operating System | Cisco IOS XE |
| Switching Performance | Line-rate forwarding on all ports |
| Memory (DRAM) | 2 GB |
| Flash Storage | 1.5 GB (User Accessible) |
| Jumbo Frame Support | Up to 8996 bytes |
| Industrial Protocol Support | PROFINET, EtherNet/IP, IEEE 1588 PTP |
| Security Features | Secure Boot, Trust Anchor Module, MACsec-128, ACLs |
| Management Options | WebUI, SNMP, Cisco Catalyst Center, RESTCONF, NETCONF |
| Power Input | Dual Redundant DC Power Inputs |
| Power Consumption | Approx. 23W |
| Mounting Type | DIN Rail Mount |
| Rugged Design | Fanless, hardened for shock, vibration, surge |
| Operating Temperature | -40°C to +75°C (with proper enclosure airflow) |
| Warranty | 5-Year Limited Hardware Warranty |
